KRYTAC BRUSHLESS MOTOR
Factory-Tuned, Drop In Ready
Engineered for KRYTAC, down to the gear teeth.
Engineered specifically for KRYTAC AEG platforms, the KRYTAC Brushless Motor is a direct, drop-in replacement for the standard 480 motor. Everything under the housing, though, is built for your gun. Its RPM and torque are factory-optimized for KRYTAC gearboxes, and a reinforced steel D-type pinion is cut to a custom KRYTAC gear profile. Going brushless means no brushes to wear out, faster trigger response, and reduced inertia for quicker cycle times, backed by four built-in protections and KRYTAC active-braking compatibility. You get reduced wear, improved lifespan, and performance dialed in before it ever reaches your gearbox.
KEY FEATURES
Custom KRYTAC gear profile
Reinforced steel D-type pinion gear with a custom KRYTAC gear profile.
Works with active braking
Designed for compatibility with KRYTAC active braking systems.
Four built-in protections
Built-in undervoltage, overcurrent, overheating, and stall protection. Overheat and stall trigger an automatic shutdown and an audible warning beep; overheat protection activates at 120°C (248°F).

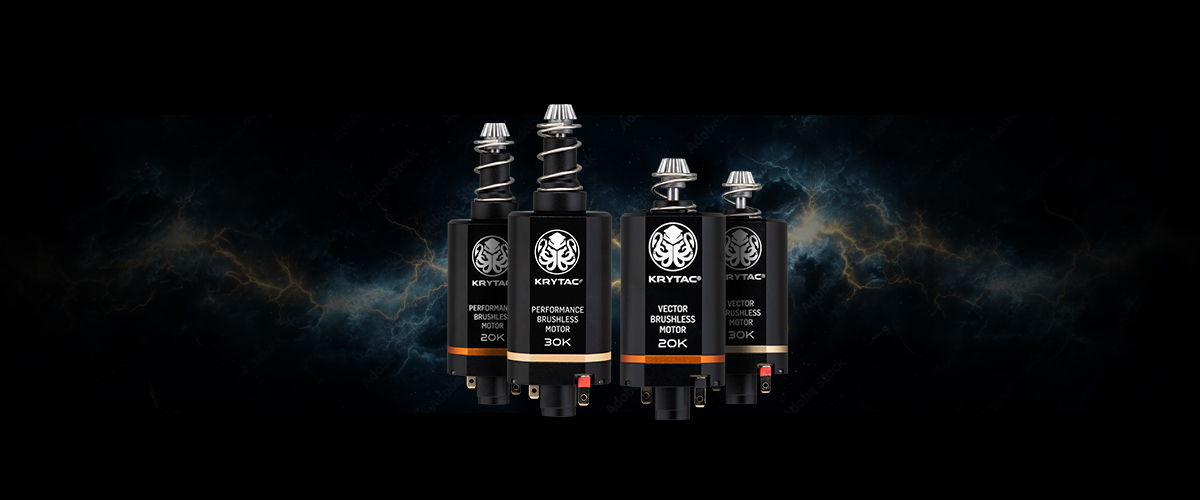

THE LINE UP

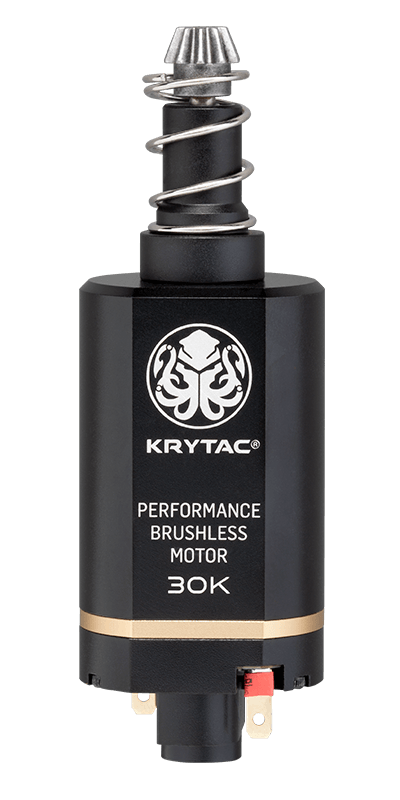

Performance
Brushless Motor 30K
Long Shaft | 30K |
SKU: KTP-PBM30KL
Factory-optimized for KRYTAC gearboxes
Fits Trident MK3/MK2/MK1, LMG, LMG-MP, LVOA, REC7, REC7 CRB, P90
Direct replacement for the 480 brushed motor

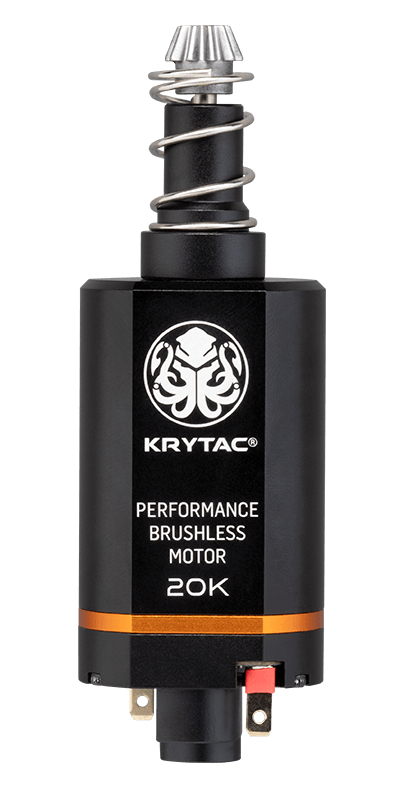

Performance
Brushless Motor 20K
Short Shaft | 20K |
SKU: KTP-PBM20KL
Factory-optimized for KRYTAC gearboxes
Fits the KRISS Vector Series
Direct replacement for the 480 brushed motor
KRISS Vector
Brushless Motor 30K
Short Shaft | 30K |
SKU: KTP-VBM30KS
Factory-optimized for KRYTAC gearboxes
Fits Trident MK3/MK2/MK1, LMG, LMG-MP, LVOA, REC7, REC7 CRB, P90
Direct replacement for the 480 brushed motor

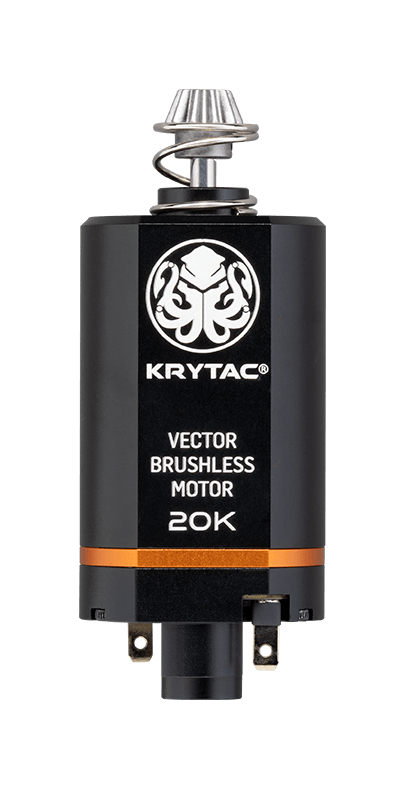

KRISS Vector
Brushless Motor 20K
Short Shaft | 20K |
SKU: KTP-VBM20KS
Factory-optimized for KRYTAC gearboxes
Fits the KRISS Vector Series
Direct replacement for the 480 brushed motor
SPECS COMPARISON
| PERFORMANCE 30K | PERFORMANCE 2OK | VECTOR 30K | VECTOR 20K | |
| SKU | KTP-PBM30KL | KTP-PBM20KL | KTP-VBM30KS | KTP-VBM20KS |
| Type | Brushless | Brushless | Brushless | Brushless |
| RPM | 30K | 20K | 30K | 20K |
| Shaft | Long | Long | Short | Short |
| Voltage range | 6V–12.8V | 6V–12.8V | 6V–12.8V | 6V–12.8V |
| Rec. Battery | 2S/3S LiPo | 2S/3S LiPo | 2S/3S LiPo | 2S/3S LiPo |
| Material | Anodized aluminum | Anodized aluminum | Anodized aluminum | Anodized aluminum |
| Weight | 128 g | 128 g | 122 g | 122 g |
| Dimensions | 88.5×29.5×25.1 mm | 88.5×29.5×25.1 mm | 73.5×29.5×25.1 mm | 73.5×29.5×25.1 mm |
| Compatible Models | M4/P90 Platform | M4/P90 Platform | KRISS Vector Series | KRISS Vector Series |
